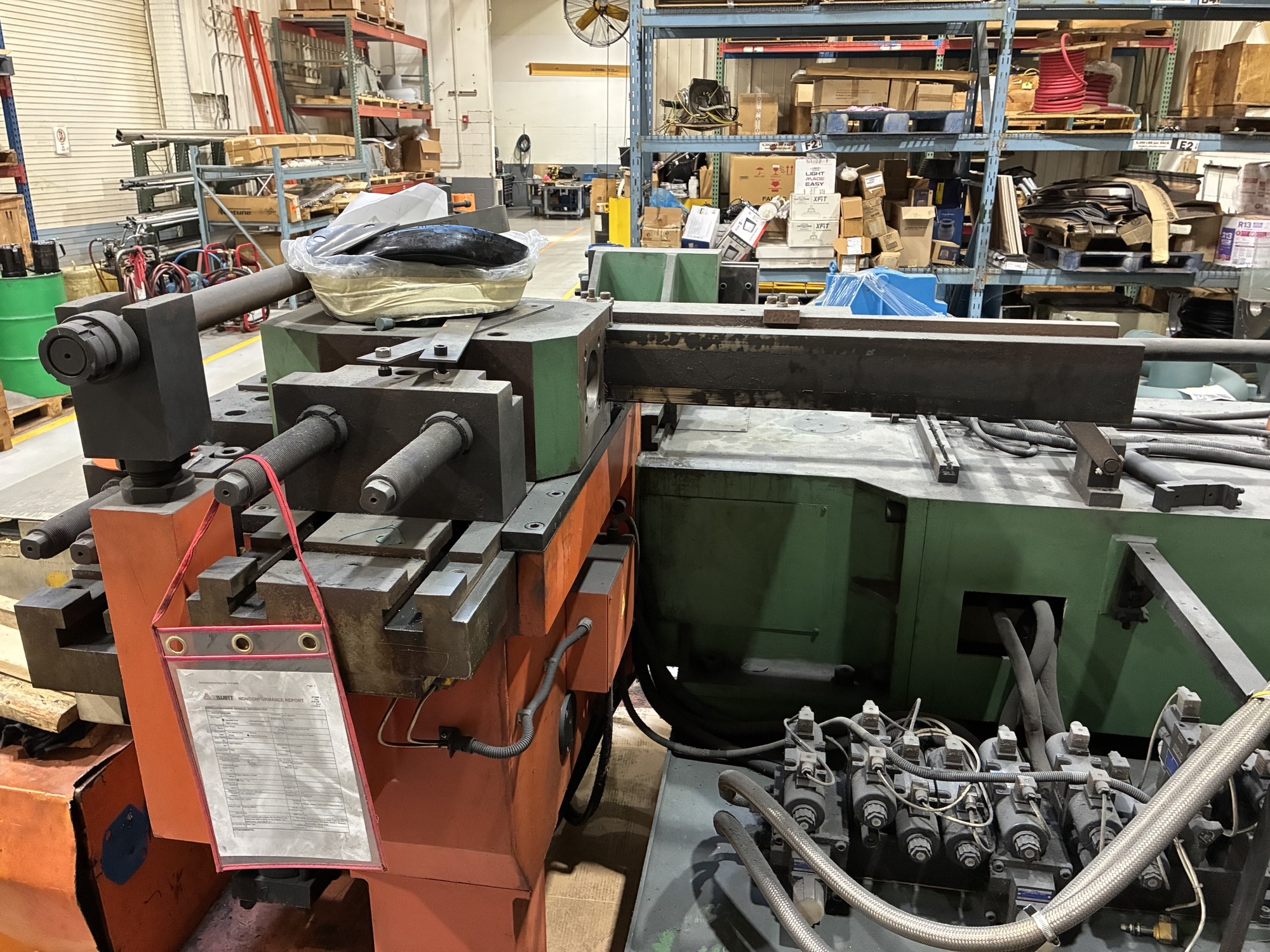

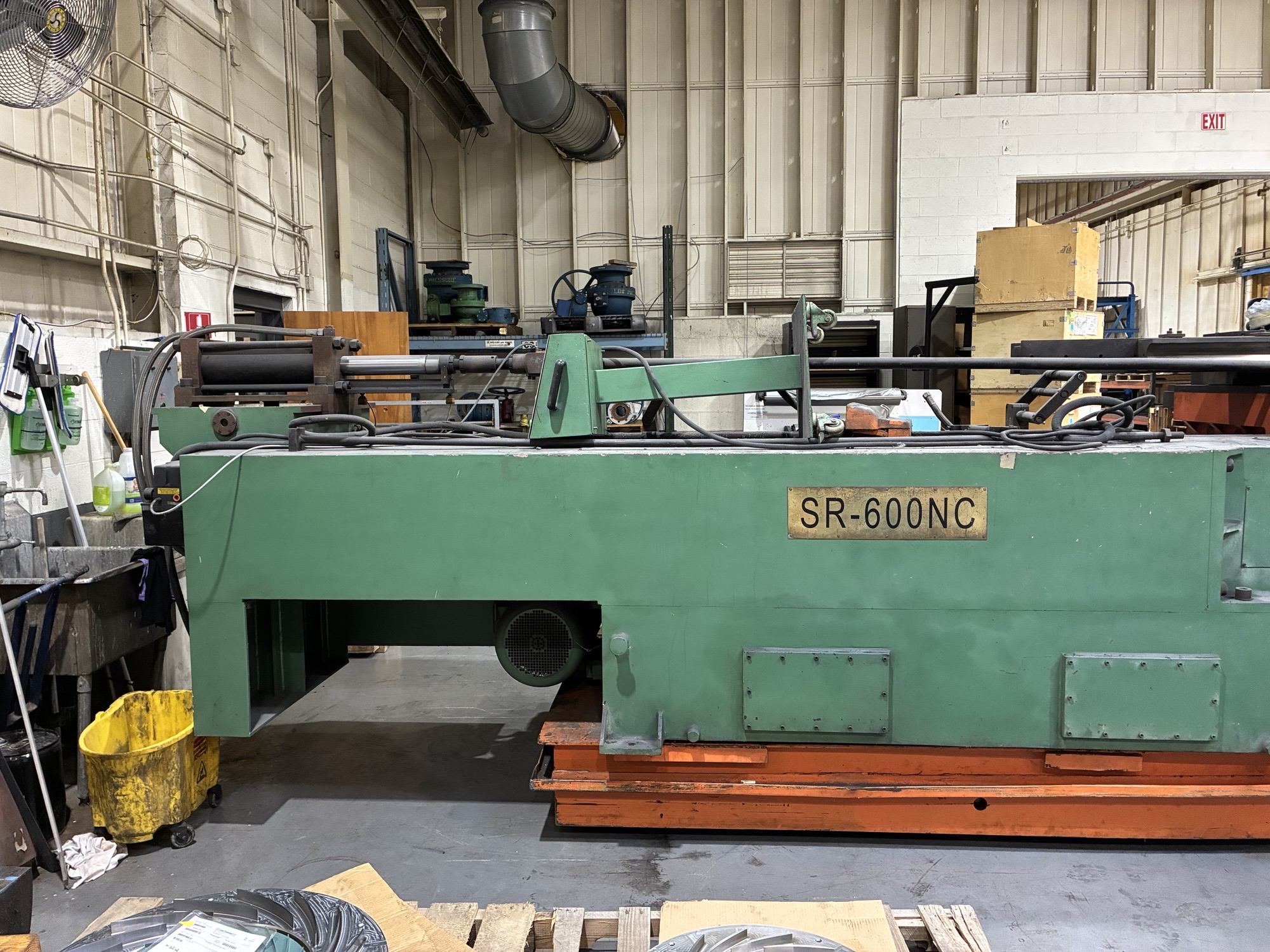

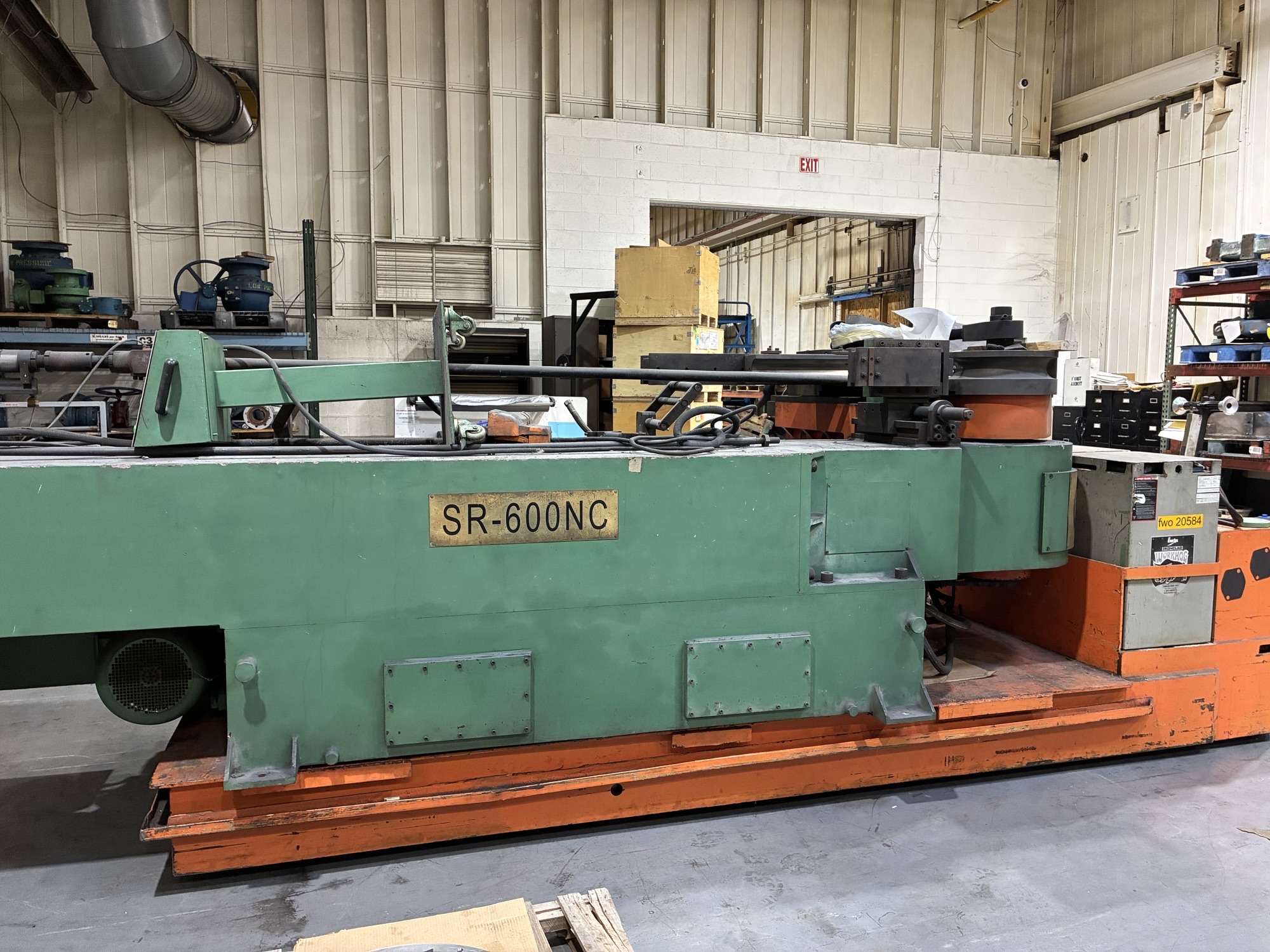

2012 CLR SR-600NC 6″ Pipe & Tube Bender
- Bender & Former
- Pennsylvania
- Ref: C2C-3006
STANDOUT FEATURES
- Installed Tooling for 3″ Pipe
- Additional Tooling & Dies for 4″ Pipe
- Used approx. 25 times over 12 Years
- Free Loading Included
THE STORY
This CLR SR-600NC Hydraulic Pipe & Tube Bender has seen minimal use. Powered up before removal in October 2026 to accommodate new equipment, it includes 3″ and 4″ Tooling Sets and Free Loading. After a straightforward Hydraulic Cylinder Repair, quoted at $3,500, it offers a cost-effective bending opportunity.
// RELATED TAGS
// SPECIFICATIONS
By the numbers.
Operation
Hydraulic
Control

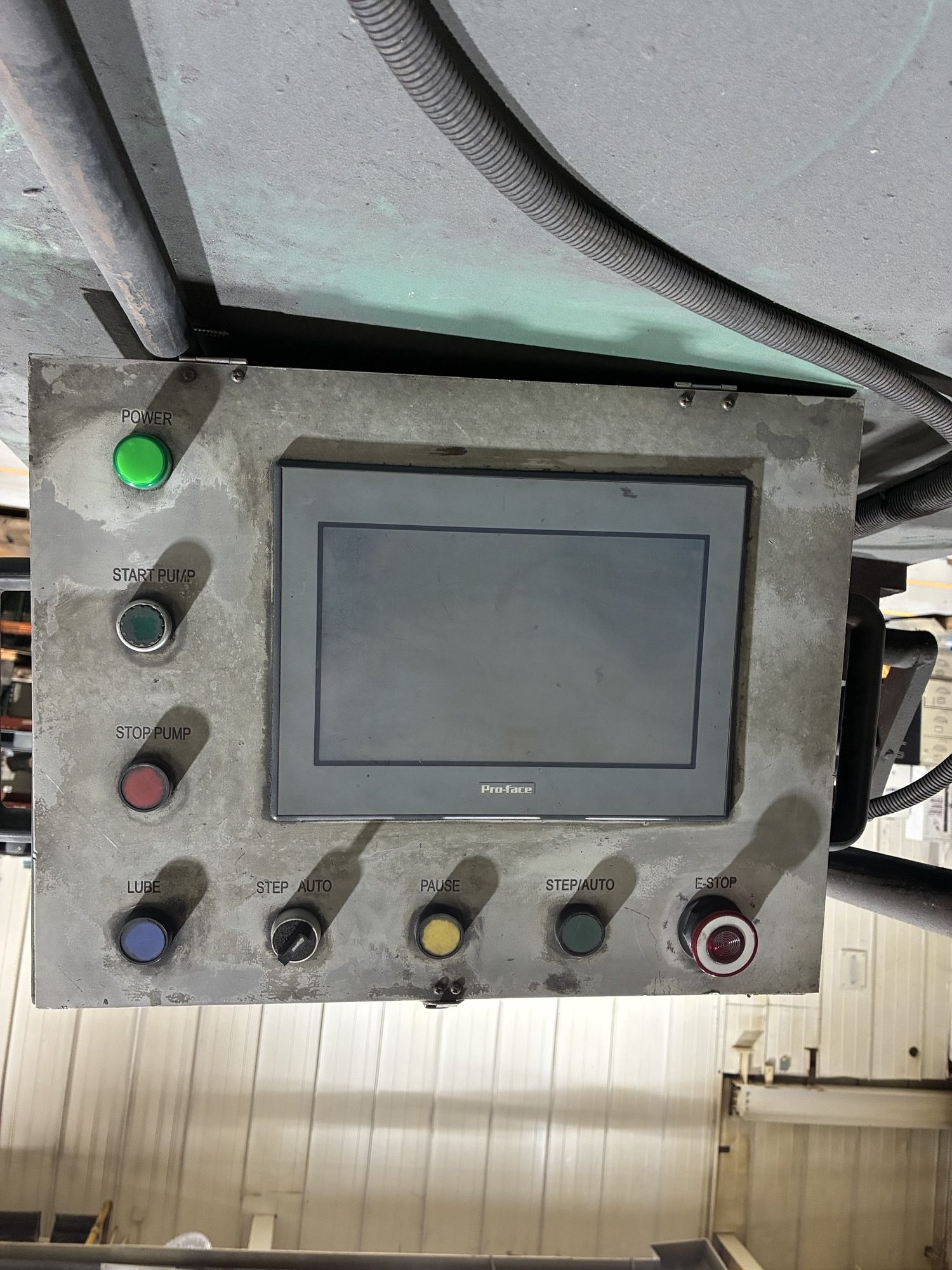

NC Bender with Pro-face Touchscreen Interface and Step/Auto Modes
Mild Steel Tube Capacity
6″ OD × 0.160″ Wall at Yield Strength up to 35,000 PSI
Stainless Steel Tube Capacity
6″ OD × 0.065″ Wall at Yield Strength up to 60,000 PSI
Nonferrous Tube Capacity
6″ OD × 0.250″ Wall at Yield Strength up to 25,000 PSI
Steel Pipe Capacity
4.5″ OD × Approx. 0.320″ Wall, Schedule 80
Maximum Bend Radius
24″
Maximum Bend Angle
180°
Tube Length Over Mandrel
12′
Bend Arm Speed
2 RPM
Maximum Hydraulic Pressure
2,200 PSI
Motor
Approx. 30 HP
Electrical Rating
23 kW
Voltage
220/440V, 3-Phase, 60 Hz—Current Configuration to Be Confirmed
Approximate Weight
15,000 lbs
Approximate Dimensions
207″ L × 79″ W × 60″ H
// FEATURES & TOOLING
Options Include.
- Installed Tooling for 3″ Pipe (complete set)
- Additional Tooling & Dies for 4″ Pipe (complete set)
- Faulty Hydraulic Cylinder (quoted $3,500 fix)
- NC Bender Control with Pro-face Touchscreen Interface and Step/Auto Modes
Lock it in.
2012 CLR SR-600NC 6″ Pipe & Tube Bender
You’ve seen the price. You’ve seen the specs. Now take 48 hours to see if it’s the right fit. Contact us to request a two-day hold while you research shipping, financing or discuss the machine with your team.
